avanto architects为芬兰酿酒厂kyro完成了一座储酒仓库。该仓库位于isokyrö农村地区的一条河流旁,其设计参考了该地区的农舍和木制谷仓。 虽然建筑物看似是用碳化木包裹,但实际上它是由黑色的混凝土板构成的。

avanto architects, a helsinki-based firm led by ville hara and anu puustinen, has completed a barrel storage building for kyrö — a finnish distillery company. located next to a river in a rural part of isokyrö, the design references the farmhouses and wooden barns common to the region. although the building appears to be clad with charred wooden planks, it is in fact made from black board formed concrete.

该仓库是五幢相同建筑中的第一幢,它们将成为avanto建筑事务所规划的更大总体规划的一部分。由于对kyro产品的需求增加,该项目将以几栋新建筑的形式扩建总部,并对基地现有结构进行改造。

the storage facility is the first in a row of five identical buildings that will form part of a larger masterplan drawn up by avanto architects. the project — brought about by increased demand for kyrö’s products — will see the expansion of the headquarters in the form of several new buildings and the conversion of the site’s existing structures.

建筑设计,工业建筑,仓库,芬兰,avanto architects

建筑设计,工业建筑,仓库,芬兰,avanto architects

要想把烈性酒称为威士忌,至少需要在橡木桶中存放三年。这意味着需要在不知道产品结果的情况下建造仓库。因此,为了将财务风险降到最低,这些建筑由标准的混凝土柱和梁组装而成。

in order to call spirit whisky, it needs to be stored for at least three years in oak barrels. this means that storage buildings needed to be constructed without knowing the outcome of the product. consequently, to minimize financial risk, the buildings were assembled from standard concrete pillars and beams.

由于威士忌是易燃液体,贮存设施有严格的防火规定。所以建筑师将建筑分成五个独立的隔间——每个隔间都有一个控制室内温度和湿度的气候。此外,还测量了从木桶中蒸发的酒精量,这样空气就不会变得易燃。

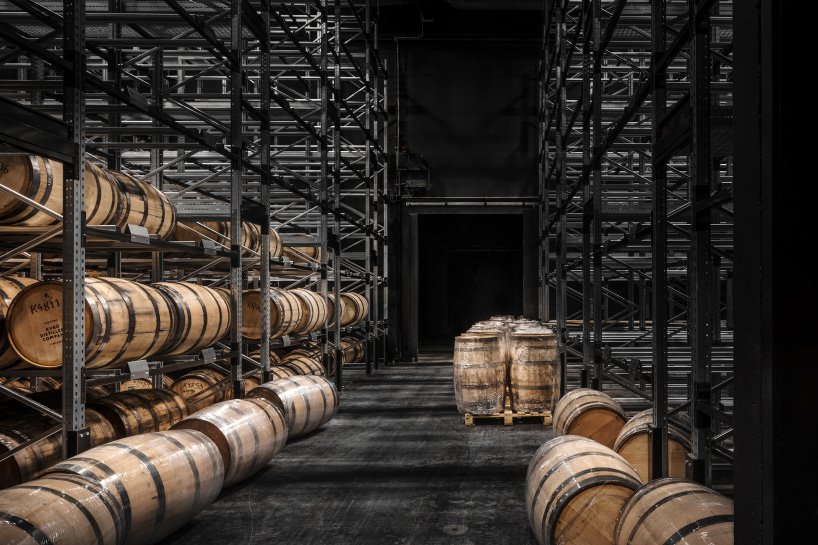

as whisky is a flammable liquid, there are strict fire regulations concerning the storage facility. in response, the architects divided the building into five separate compartments — each of which has a controlled indoor climate in terms of temperature and humidity. furthermore, the amount of alcohol evaporating from the wooden barrels is measured so that the air doesn’t become flammable.

建筑设计,工业建筑,仓库,芬兰,avanto architects

建筑设计,工业建筑,仓库,芬兰,avanto architects

建筑设计,工业建筑,仓库,芬兰,avanto architects

外部混凝土构件被浇铸在一个模子上,模子是由由酿酒厂老板的岳母拥有的一个拆卸谷仓的木板制成的。“有趣的是,混凝土很好地再现了风化的木质材料,以至于许多人一直在触摸外墙并仍然认为它是木头。”设计团队评论道。

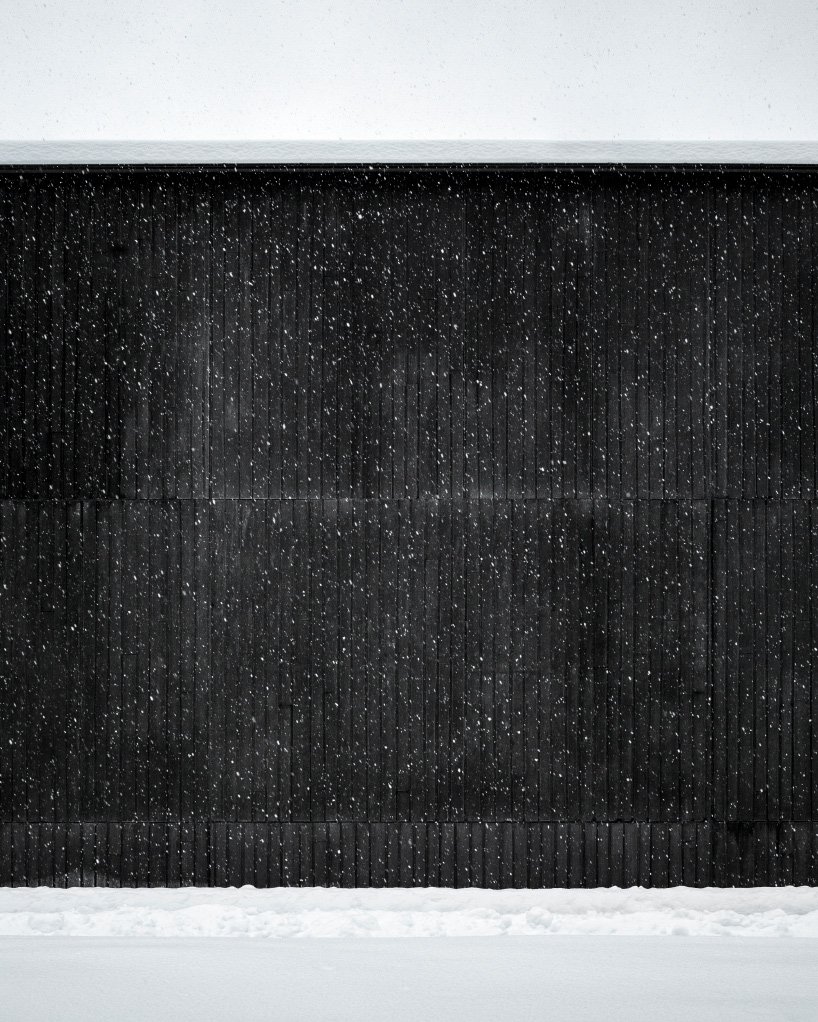

the external concrete elements were cast on a mold made of planks from a dismantled barn owned by the mother-in-law of one of the distillery owners. ‘funnily, concrete reproduces the weathered wood material so well that many people have been touching the façade and still believing it is wood,’ comments the design team.

建筑设计,工业建筑,仓库,芬兰,avanto architects

建筑设计,工业建筑,仓库,芬兰,avanto architects

建筑设计,工业建筑,仓库,芬兰,avanto architects

建筑设计,工业建筑,仓库,芬兰,avanto architects

完整项目信息
项目名称:kyrö barrel storage building
项目位置:芬兰
项目类型:工业存储建筑
设计时间: 2018
建造时间:2018-2019
建筑总面积:1,065 sqm
客户:kyrö distillery company
项目经理:robert sivula b. eng./kyrö distillery company
建筑师:avanto architects ltd / ville hara and anu puustinen, architects SAFA
研究助理:emmanuel laux, architect, miyuki wakasugi, student of architecture
结构设计:ramboll finland oy / markku savela b. eng., matti passi b. eng.
HVAC设计:ramboll finland oy / tuomo korpi b. eng.
电气设计:ramboll finland oy / tuukka perttula b. eng.
摄影:anders portman, kuvio
