Steyn Studio | 西班牙马德里Sierra 住宅

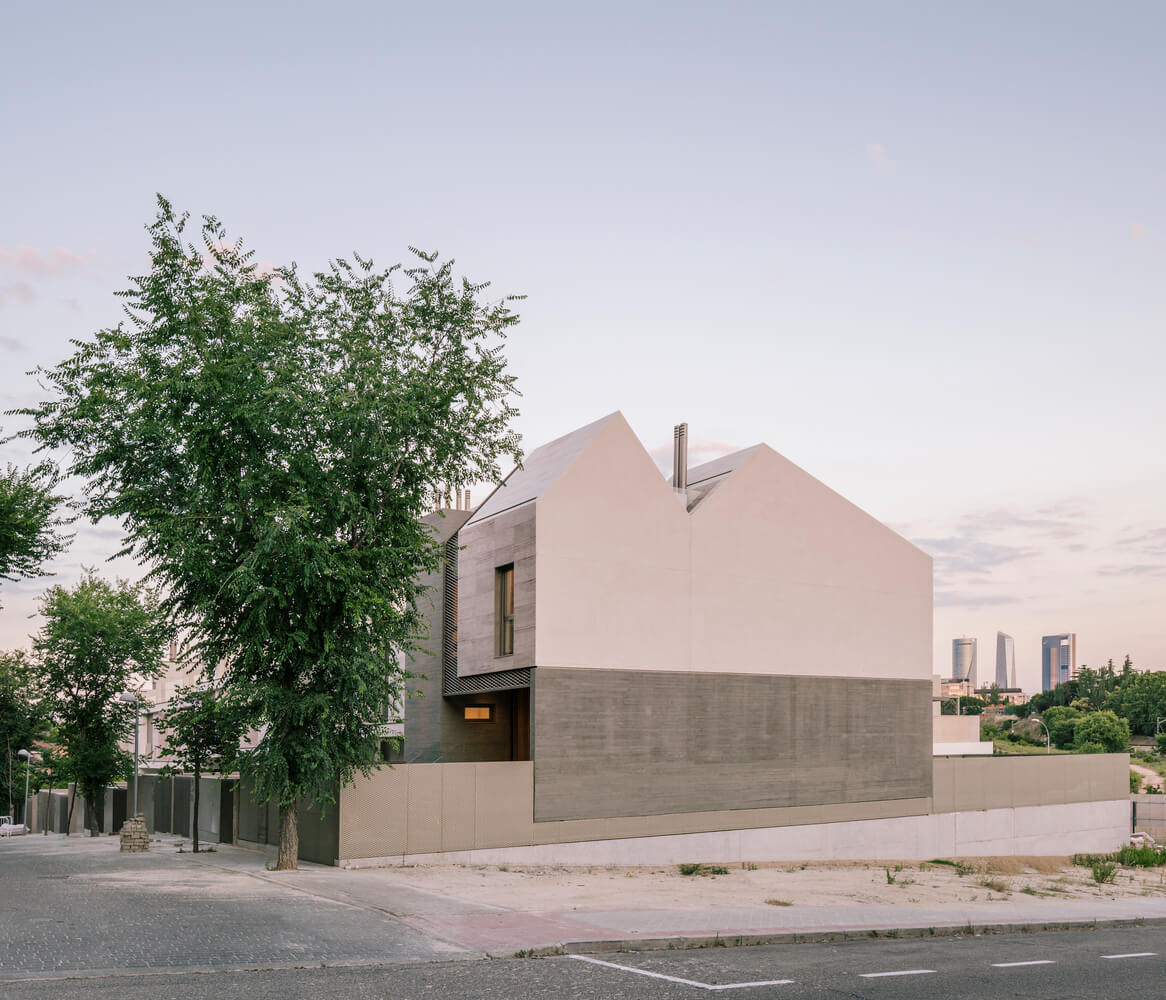

Steyn Studio设计了位于西班牙的Sierra 住宅，正如名字所暗示的那样，这栋房子的名字来源于它独特的屋顶轮廓。“Sierra”在西班牙语中的意思是“锯”和“山脉”。这是一个幸运的巧合，因为该住宅位于马德里西北部的米拉塞拉(Mirasierra)和蒙特卡梅洛(Montecarmelo)社区之间。

As the name alludes, this house adopted its nickname from its distinct roof profile. ‘Sierra’ meaning both ‘saw’ and ‘mountain range’ in Spanish. A fortunate coincidence as the house is located between Madrid’s north-westerly neighbourhoods of Mirasierra (look at mountain) and Montecarmelo (Mount Carmel).

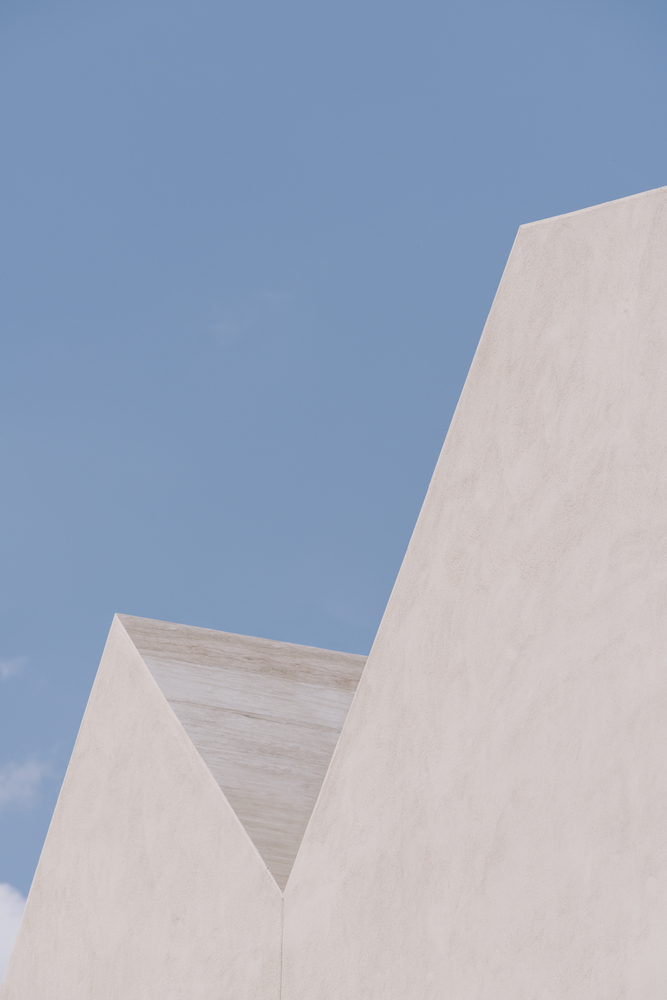

屋顶的形状是内部空间要求的结果。由于高度的限制，屋顶坡度不能在中间达到峰值。由于它与下面的浴室相吻合，我们决定将山峰倒置，利用空间隐藏机器和太阳能电池板。

The shape of the roof is a result of internal spatial requirements. Due to height restrictions, the roof slopes could not peak in the middle. As it coincides with a bathroom below, we decided to invert the peak and use the space to hide the machinery and solar panels.

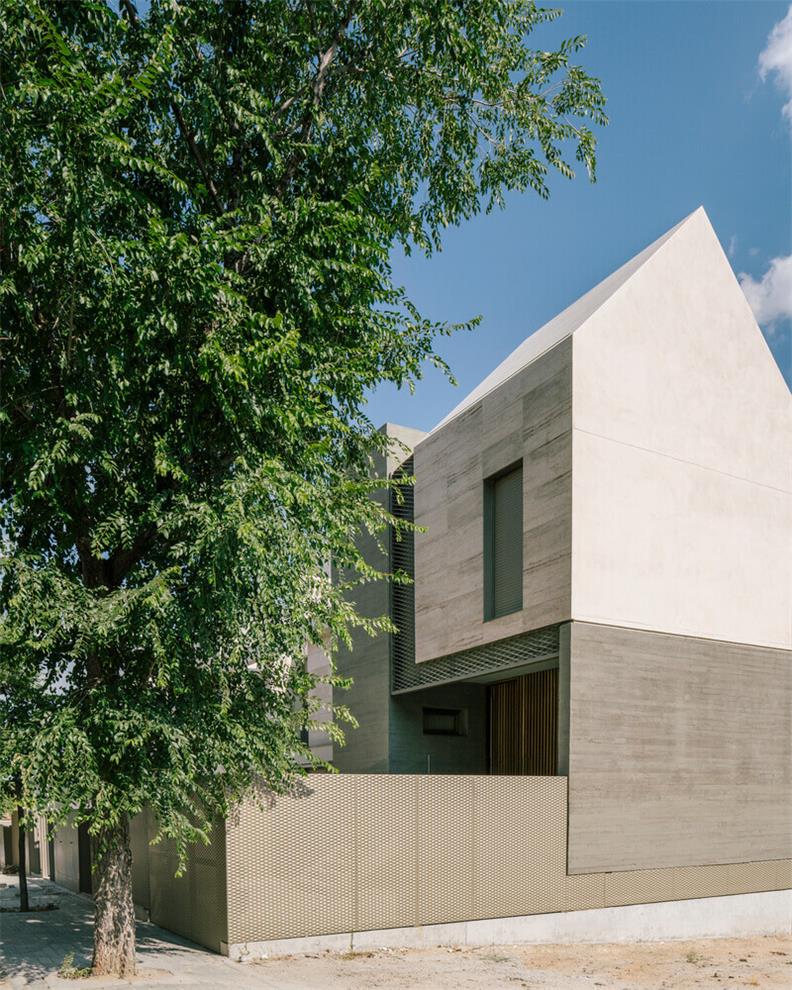

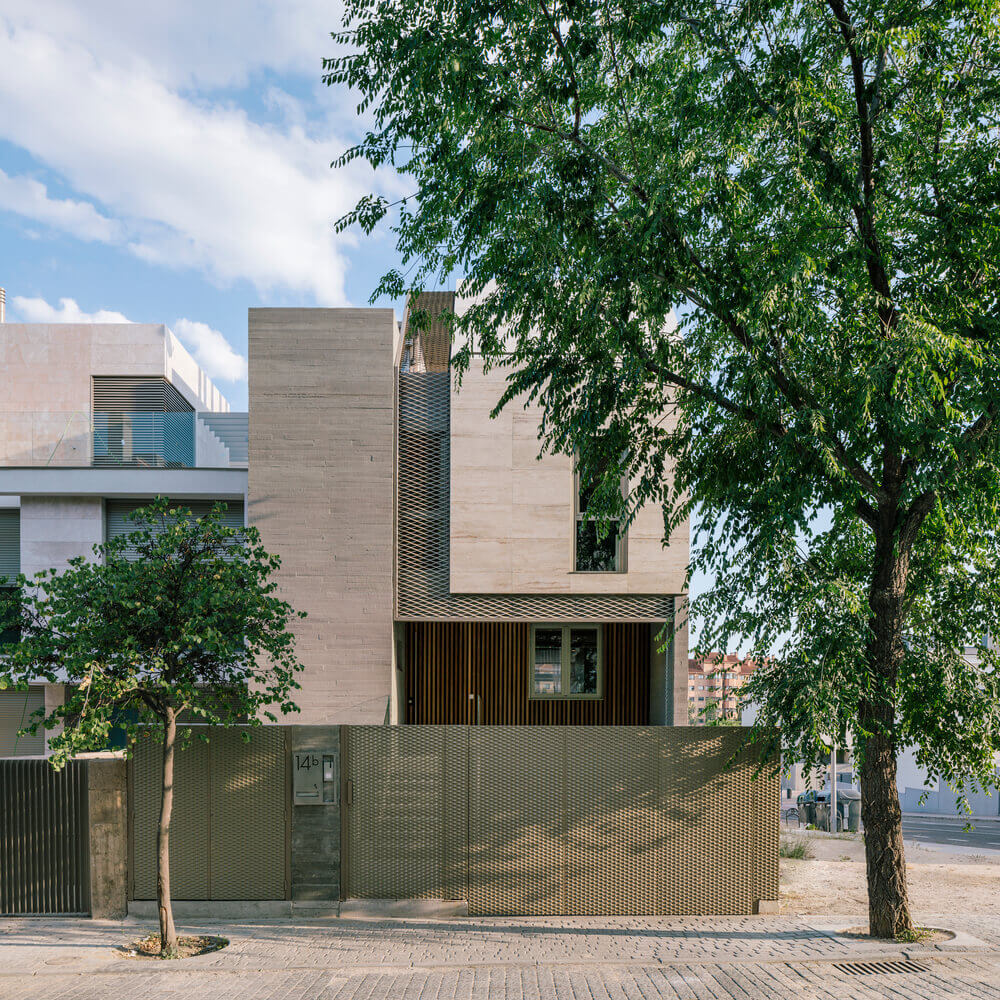

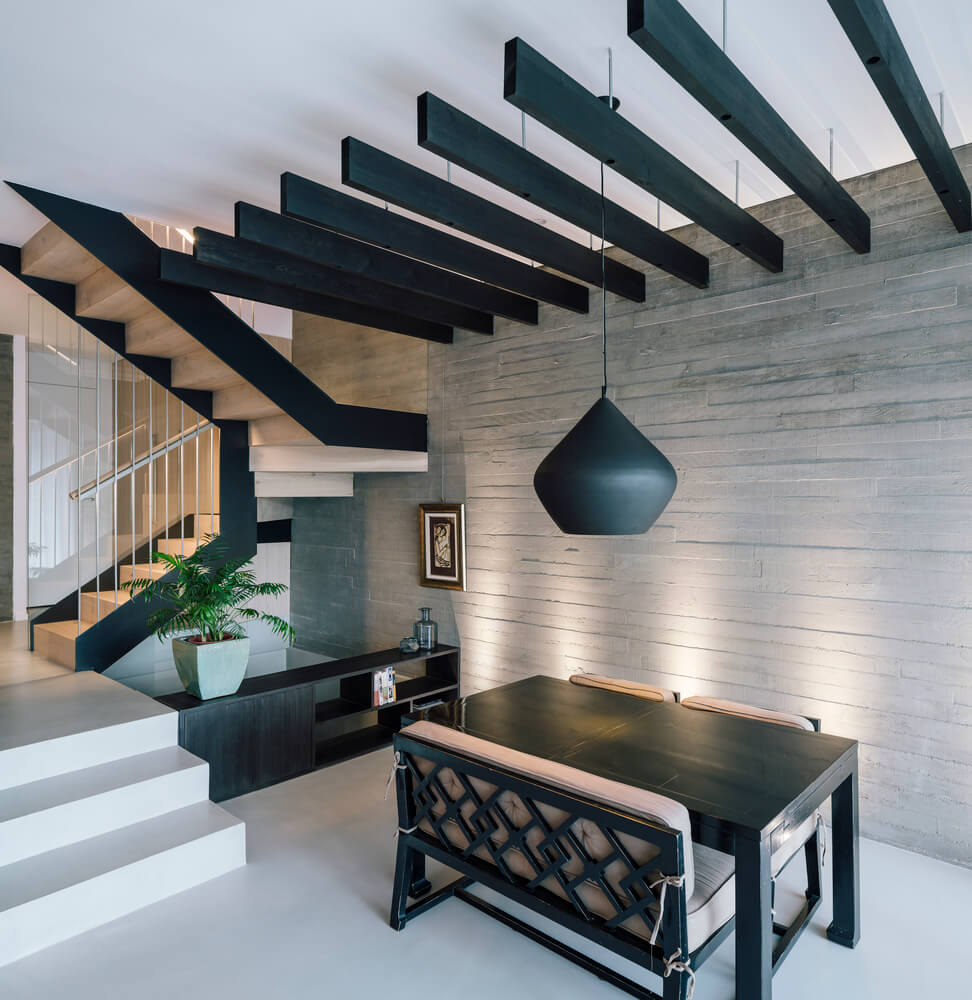

作为一个联排别墅，空间之间裸露的木板混凝土特色墙，包括一个整体的“雕刻”石灰华块。这两种对比鲜明但互补的材料参考了附近已有的一些材料。

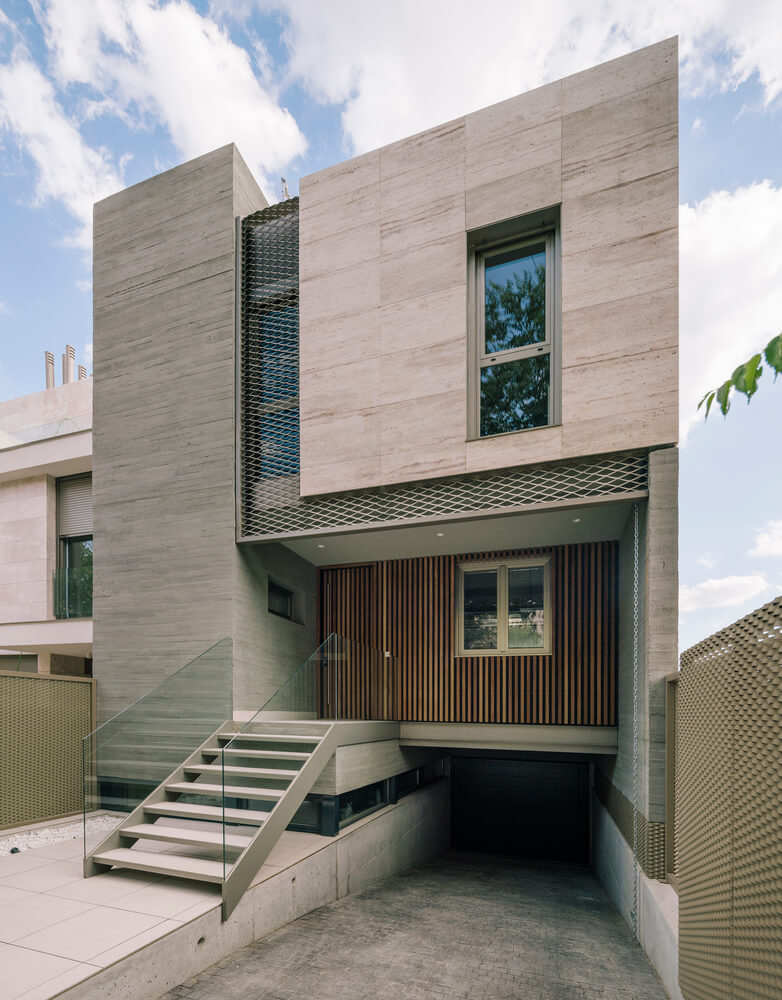

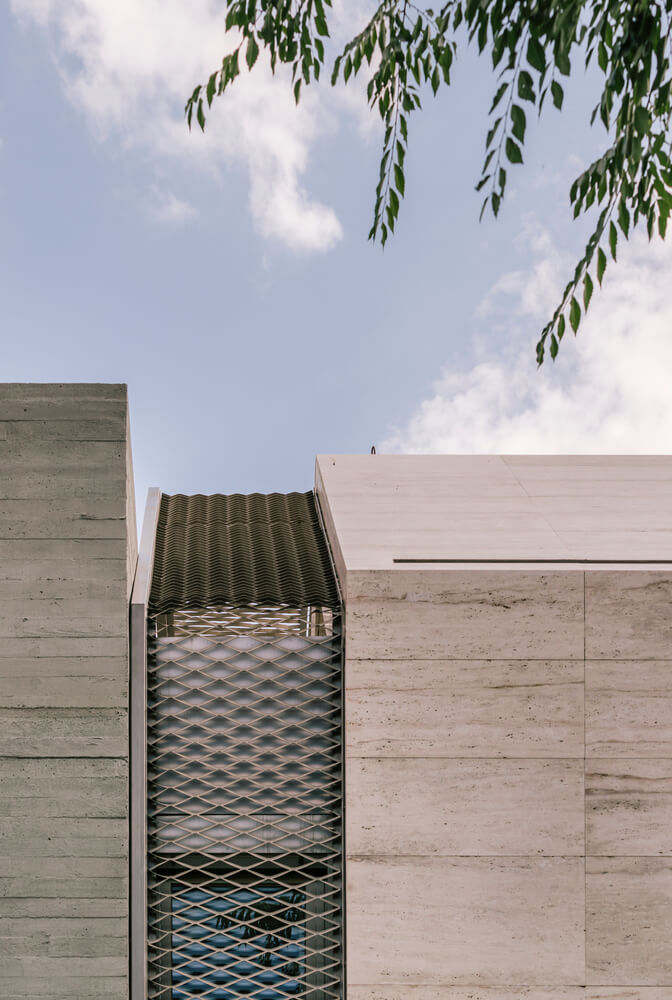

As a townhouse it claims its own space between exposed boarded concrete feature walls, cradling a monolithic ‘carved’ travertine block. These two contrasting yet complementary materials references some of the materials already nearby.

∇ 地面层平面 ground floor plan

∇ 一层平面图  1F plan

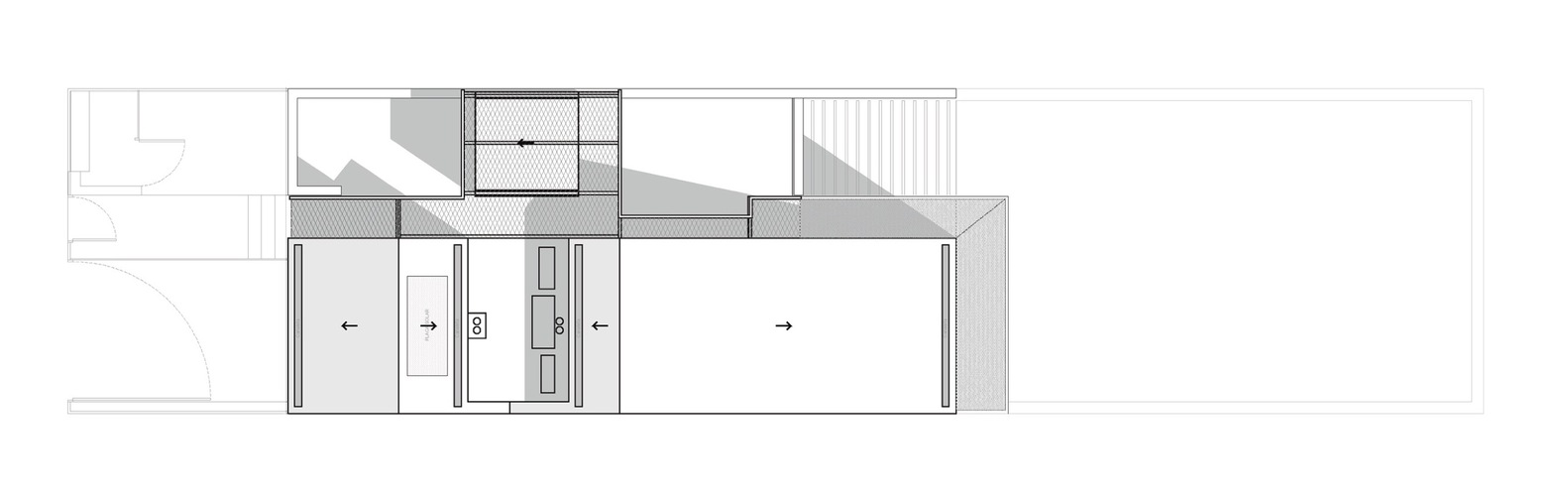

∇ 屋顶平面 roof plans

∇ 地下一层平面图 basement 1F plan

∇ 立面图 elevation

∇ 西立面图 west elevation

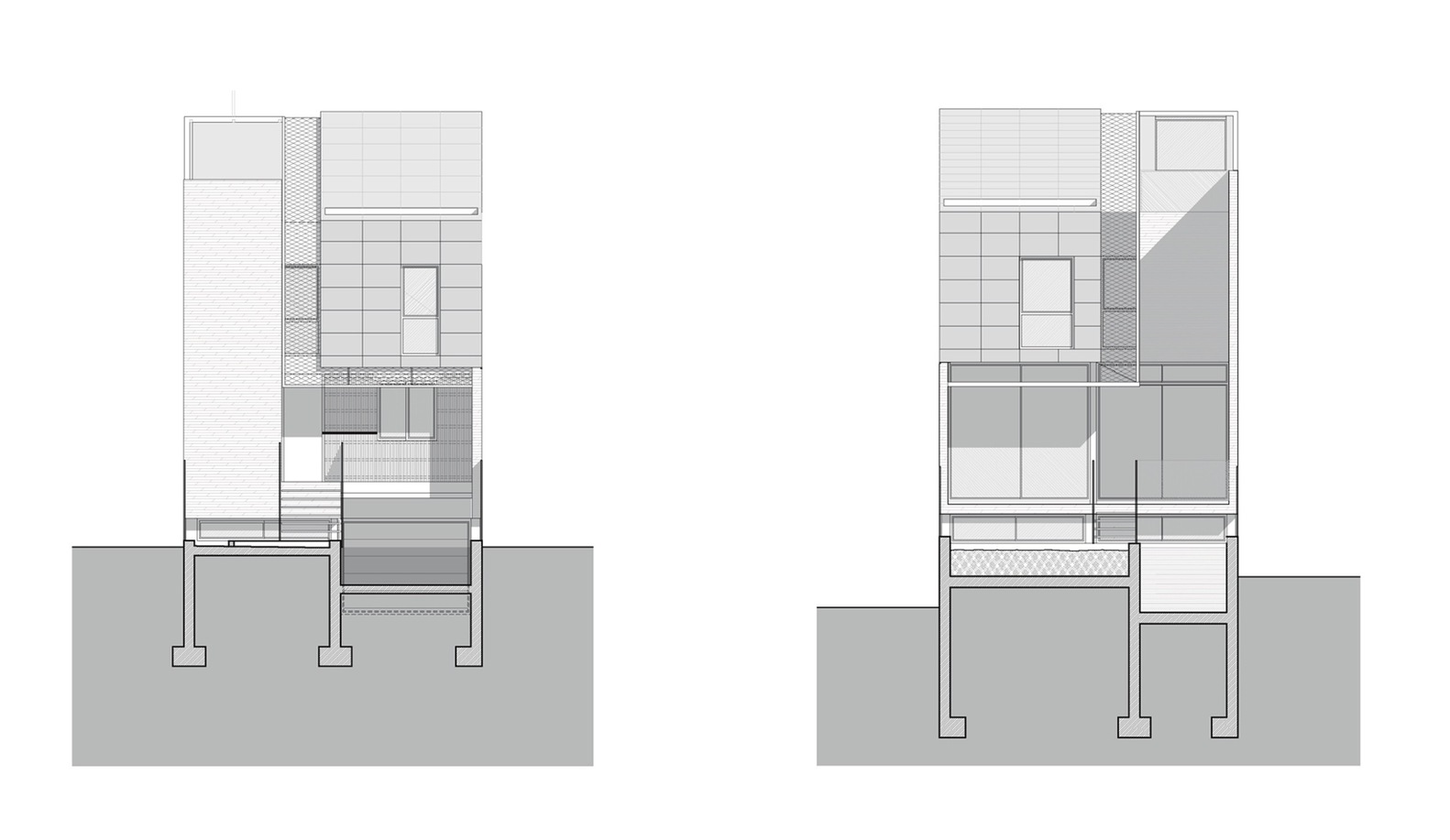

∇ 剖面图 sections

∇ 轴测图 axonometries

完整项目信息
项目名称：Sierra House
项目位置：西班牙马德里
项目类型：住宅空间/别墅
完成时间：2018
项目面积：268平方米
设计公司：Steyn Studio
摄影：Imagen Subliminal
