全球设计风向感谢来自四周建筑的商业改造空间项目案例分享:
设计一个捕捉需求,创造需求的空间。
Space was designed by needs that we found and captured.
在目下我们认为商业的发展是城市更新的核心动力。成都武侯大悦城作为城市区域核心商业综合体,整体业态的调整和发展是城市功能更新的重要部分。我们希望借助于商业的空间的改造设计参与进城市更新当中。通过空间去认知人的行为,为人做服务,使空间作为人和运营内容的核心链接媒介。
At present, we believe that commercial development is the core driving force of urban renewal. As the core commercial complex in the urban area, the adjustment and development of the overall business form is an important part of urban function renewal. We hope to participate in urban renewal through the transformation design of commercial space. we could recognize people’s behavior, serve people through space, and make it the core linking medium between people and their operating contents.

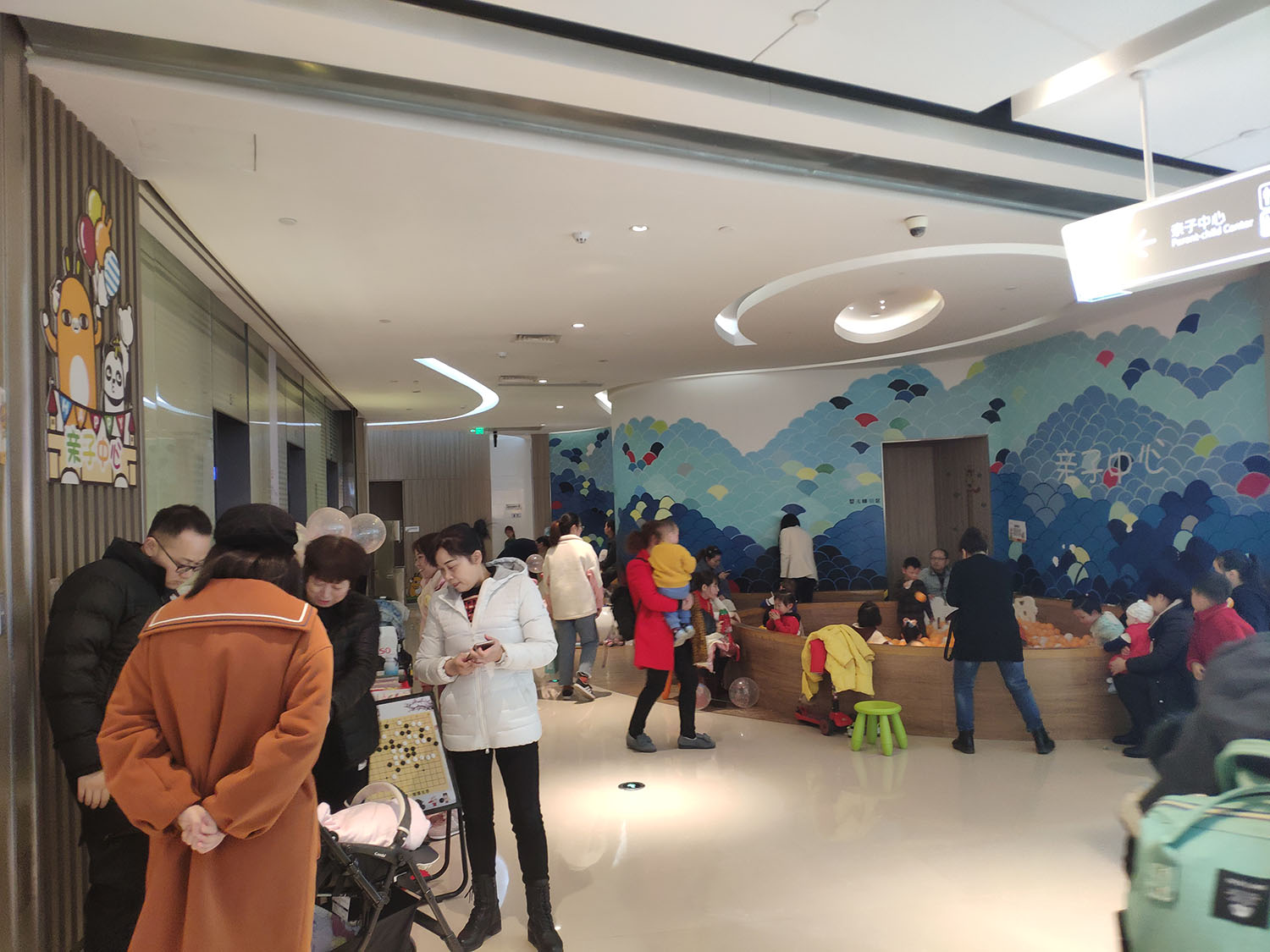

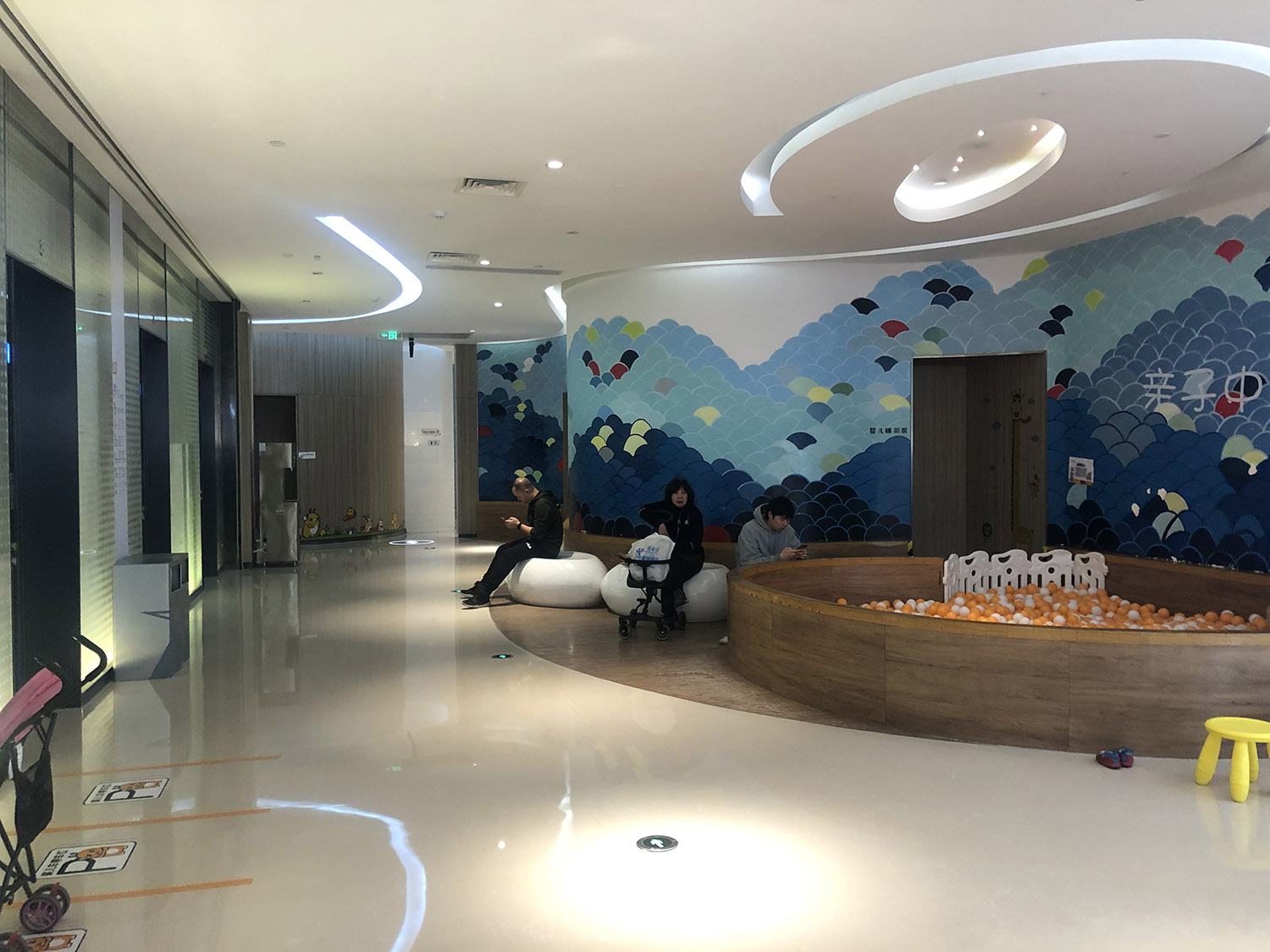

∇ 改造前现场情况

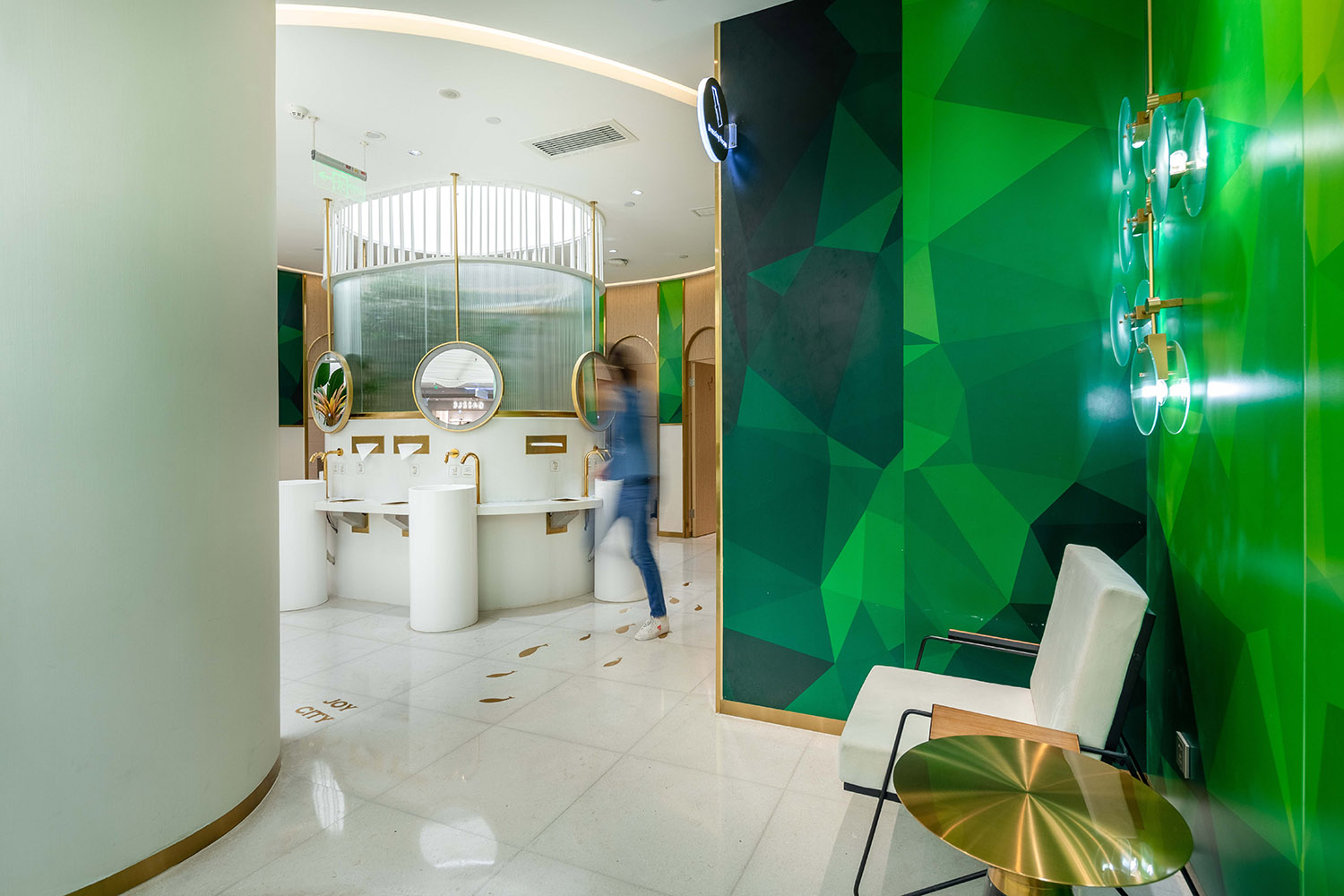

捕捉需求的设计:女性私享空间—无界树林
Design to capture requirements: Private space for women(unbounded forest)
我们从两个商业空间中卫生间的典型问题出发:一是女性对环境敏感度高,女性卫生间面积不足,导致非主动滞留时间长。二是卫生间空间封闭,位置边缘,空间消极。
We start with the typical problem of toilets in two commercial Spaces: first, women are highly sensitive to the environment and lack bathroom area, which leads to long involuntary retention time. The second is the toilet space is closed at the edge , and the space is negative.
很庆幸我们的甲方同时也是中国最优秀的商业运营方之一,通过反复讨论,我们确认了核心女性用户的体验最大化原则,将原有男女对半的空间分布格局,调整为全部是女性私享空间。并进一步通过公共界面的引导,主动构建无界的空间状态,就像树林给人的空间体验,有隐私感但是亲切,开放。
We are glad that the Employee is also one of the best business operators in China, After much discussion, we identified the principle of maximizing the experience of our core female users, the original 50/50 spatial distribution pattern of men and women was adjusted to be exclusively women’s private space. And further through the guidance of public interface, take the initiative to build an unbounded space state, just like the space experience of the forest, which has a sense of privacy but is friendly and open.
女性空间通过曲线的家具,装饰,墙体,流动的串联起各种功能,延伸和融合了更丰富的行为。使简单的如厕行为成为一整套等候,休憩,试衣,化妆,进而再购买的系列行为,扩大了空间和功能的外延。我们希望这个空间成为眼花缭乱商场中驻足休憩的场所,同时也是商业的一部分,从而通过“无界树林”这个空间理念捕捉使用者和经营者两者的行为,成为一个积极的场所。从日后的用户评价来说,也确实实现了这个初衷。
The women’s space connects various functions through curved furniture, decorations, walls, and flowing, extending and integrating a richer range of behaviors. The simple act of going to the toilet becomes a whole series of actions of waiting, resting, trying on clothes, making up, and then buying, which could expand the extension of space and function. We would like this space to be a place to stop and rest in the dazzling shopping mall, but also a part of the business. In this way, the behavior of both users and operators can be captured through the spatial concept of “unbounded forest”, which has indeed realized this original intention from the user evaluation in the future.
创造需求的设计:亲子空间-相望相伴的乐园
Design to create demand: The space for parents and children (mutually accompanying park)
80后小时候看的动画片《魔方大厦》,里面是孩子对于世界真实或魔幻的反馈。我们以像素为主题,代表着可定义、可变、未知,这是成人世界和孩子之间相互的感知。但像素不是装饰,而是为空间的载体,为孩子们提供富有探索性的游乐场,为家长提供舒适的照看空间。孩子可以在专属的领域里尽情穿梭、跳跃和探索,有自己的领域感与独立性,父母就可以更舒适轻松地照顾孩子。
The cartoon “MoFangDaSha” that the post-80s watched as a child, that has the child’s feedback on the reality or the magic of the world. We take pixels as the theme, representing the definable, variable, unknown, which is the mutual perception between the world of adult and child. But pixel is not decoration, but for the carrier of space, for children to explore the playground, for parents to provide comfortable care space.
普遍的商场的亲子空间仅提供了母婴室,但其实亲子家庭的类型是多样的,需要多种公共服务空间及设施。所以我们在亲子空间集合了安全的儿童游戏空间,舒适且便于照度孩子的家长休息空间,独立的儿童卫生间和家庭卫生间,功能及设备齐全的母婴室,以期满足亲子家庭的需求。
The common parent-child space in shopping malls only provides a mother and baby room, but in fact, the types of parent-child families are diverse and require a variety of public service Spaces and facilities, to meet the needs of parent-child families, we have set up safe children’s play space, comfortable and easy to light up the children’s parents’ rest space, independent children’s toilet and family toilet, fully functional and equipped mother and baby room.
∇ 女性私享空间轴测图

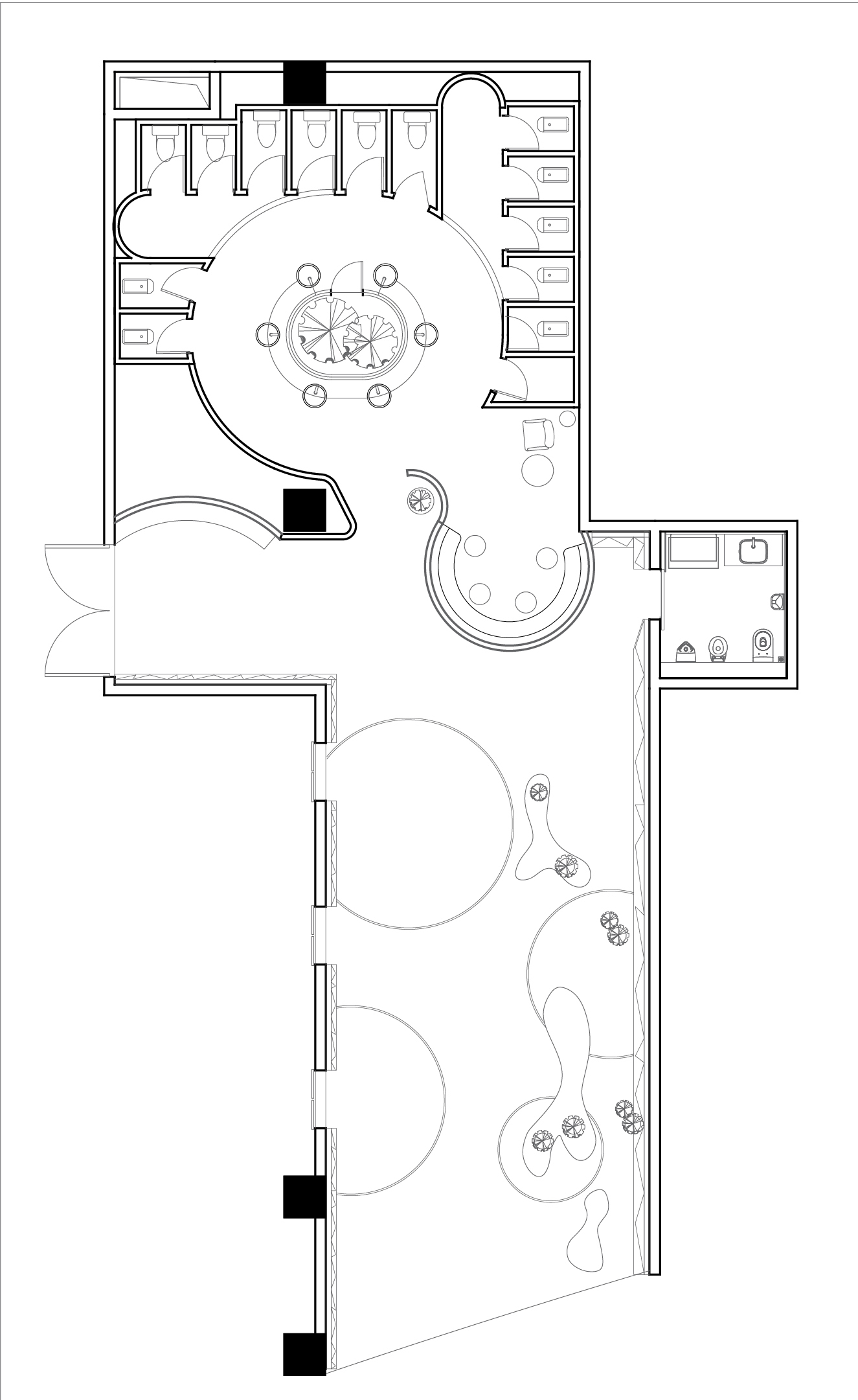

∇ 女性私享空间平面图
∇ 亲子空间轴测图

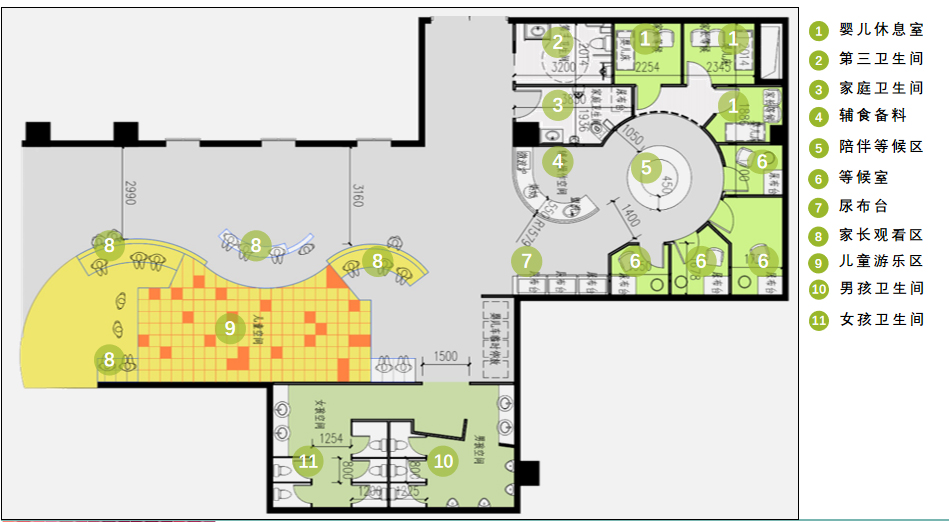

∇ 亲子空间平面图
项目信息
项目名称:成都武侯大悦城局部商业空间提升
设计方:四周建筑
主创及设计团队:主创建筑师: 金显书&刘佳设计团队: 杜红玲、刘佳音、秦清珂、江若倩
官网
联系邮箱:atelier-sq@sq-arch.cn
建筑面积:450㎡
项目地址:成都武侯大悦城
摄影师:梁文耀
摄影版权:四周建筑
客户:中粮大悦城
装修主材:艺术涂料、超纤pu软包、印花铝板
