白色城堡
White Castle
园所所在社区为徐汇田林社区，社区较为成熟园所周边是住宅群、中学和小学。园所总用地面积4000平方米建筑面积为2000平方米，园所外立面已经破旧不堪，现场勘察后发现存在诸多问题需要改进。
The community where the garden is located is Tianlin Community in Xuhui, which is relatively mature. The surroundings of the garden are residential complexes, middle schools, and primary schools. The total land area of the park is 4000 square meters, with a building area of 2000 square meters. The exterior facade of the park is already dilapidated, and after on-site investigation, it was found that there are many problems that need improvement.
∇ 建筑外观©杨作勋 Exterior view
需要设计解决的是动线、外立面和空间的重新规划。走廊是近端式的与南侧活动场地没有环通，后勤动线与教室动线交叉在狭窄的近端走廊内。这也导致小孩子的行动受阻扎堆的问题。在走廊近端的教室中间划开一个廊道通向室外活动场地，这样内廊与户外活动场地形成了环形的闭合动线，这一改变不仅让内走廊明朗了，让小孩子有了奔跑的动力。
What needs to be designed to address is the re planning of the moving line, exterior facade, and space. The corridor is a near end style and does not have a circular connection with the southern activity area. The logistics and classroom lines intersect within the narrow near end corridor. This also leads to the problem of children’s movement being hindered and clustered. A corridor is opened in the middle of the classroom near the corridor, leading to the outdoor activity area. This creates a closed loop between the inner corridor and the outdoor activity area. This change not only makes the inner corridor clear, but also gives children the motivation to run.
∇ 建筑外观©杨作勋 Exterior view
拱形圆窗洞和大小不一的窗洞打破了原工厂式的外立面，模糊了层的界限，建筑外立面有了新的活力。
The arched circular window openings and window openings of different sizes have broken the original factory style facade, blurring the boundaries of floors, and giving the building facade new vitality .
∇ 原建筑与新建筑对比，改建后的外立面有了新的生机©杨作勋
Compared with the new building, the renovated façade has gained new vitality
∇ 一层教室©杨作勋 Classroom on the first floor

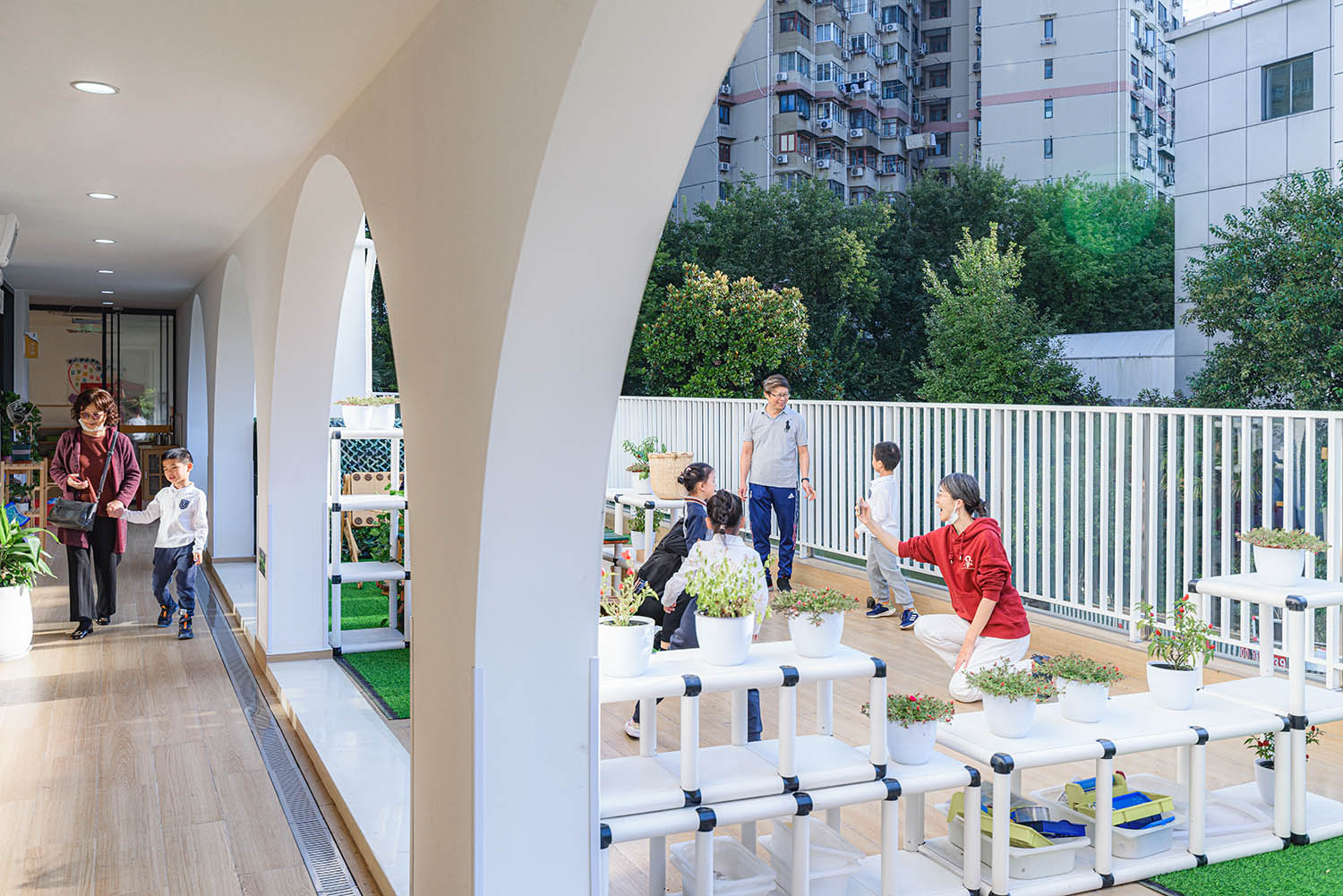

∇ 二层南走廊与户外平台©杨作勋South corridor and outdoor platform on the second floor
原北走廊改成了南走廊，卫生间移至原北廊处卫生间有了直接的通风和采光。南走廊不仅有了采光，室外活动平台与室内之间有了一个暧昧的过渡空间，教室有了向户外自然延伸的张力。为小孩子创造更多的户外活动的机会。
The original North Corridor has been changed to the South Corridor, and the bathroom has been moved to the original North Corridor with direct ventilation and lighting. The South Corridor not only has daylight, but also creates an ambiguous transition space between the outdoor activity platform and the interior, giving the classroom a tension that extends naturally towards the outdoors. Create more opportunities for outdoor activities for children.
∇ 二层教室©杨作勋Classroom on the second floor
∇ 南侧彩虹走廊©杨作勋 Rainbow Corridor on the South Side
∇ 奔跑在彩虹走廊的小孩子©杨作勋 Children Running in the Rainbow Corridor
∇ 三层教室©杨作勋 Classroom on the third floor
∇ 礼堂©杨作勋 Multi-Function Hall
∇ 礼堂走廊©杨作勋 Multifunctional hall corridor
∇ 家长开放日场地活动©杨作勋 Parent Open Day Venue Activities
∇ 教工之家拱形云朵楼梯©杨作勋 Faculty Home Arch Cloud Staircase
∇ 校门入口©杨作勋 School entrance
∇ 图纸©元秀万建筑设计事务所 Drawings
项目信息
项目名称：上海徐汇区科技幼儿园宜山园1部
项目地点：中国上海
场地面积：4000平方米
建筑面积：2000平方米
建筑及室内设计：元秀万建筑事务所（ams）
主持建筑师：元秀万
设计团队：邹赫，尹成旭
施工图单位：开艺设计集团
摄影：杨作勋
主要建材：白色无机涂料，木纹护墙板，马赛克瓷砖
设计时间：2022-09—2023-05
施工时间：2023-07—2023-09
Project name：Shanghai Xuhui Science and Technology Kindergarten Yishan Garden 1
Location：Shanghai ,China
Site area : 4000 sq
FLoor space: 2000sq
Architecture and Interiors:Yuan Xiuwan Architect＆Associates
Lead Architect:Yuan xiuwan
Team:Zou he,Yin chengxu
Construction drawing unit:Kaiyi Design
Photography Copyright:Yang zuoxun
Main materials:White inorganic coating, wood grain wall panels, mosaic tiles
Project Design: 2022-09-2023-05
Completion time: 2023-07-2023-09
